At a major event, the problem is not the washing but the throughput.
Glass and mug washers for events
On a festival evening, thousands of glasses and mugs per hour have to get back to the bar — clean, clear and ready to serve.
1 · The task
A normal dishwasher does not keep this cycle
And warm, damp glassware is unusable at the bar.
2 · How the system works

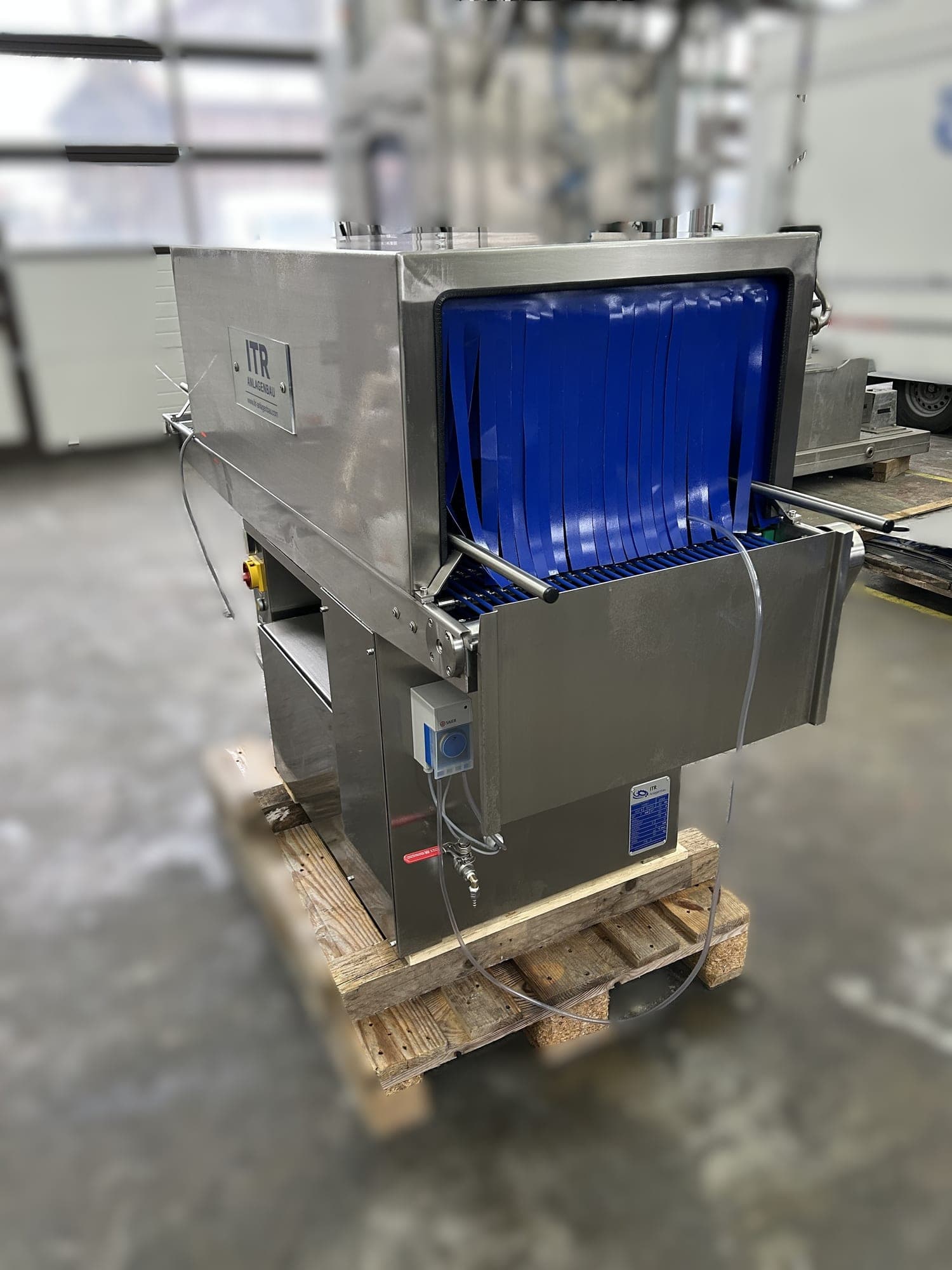

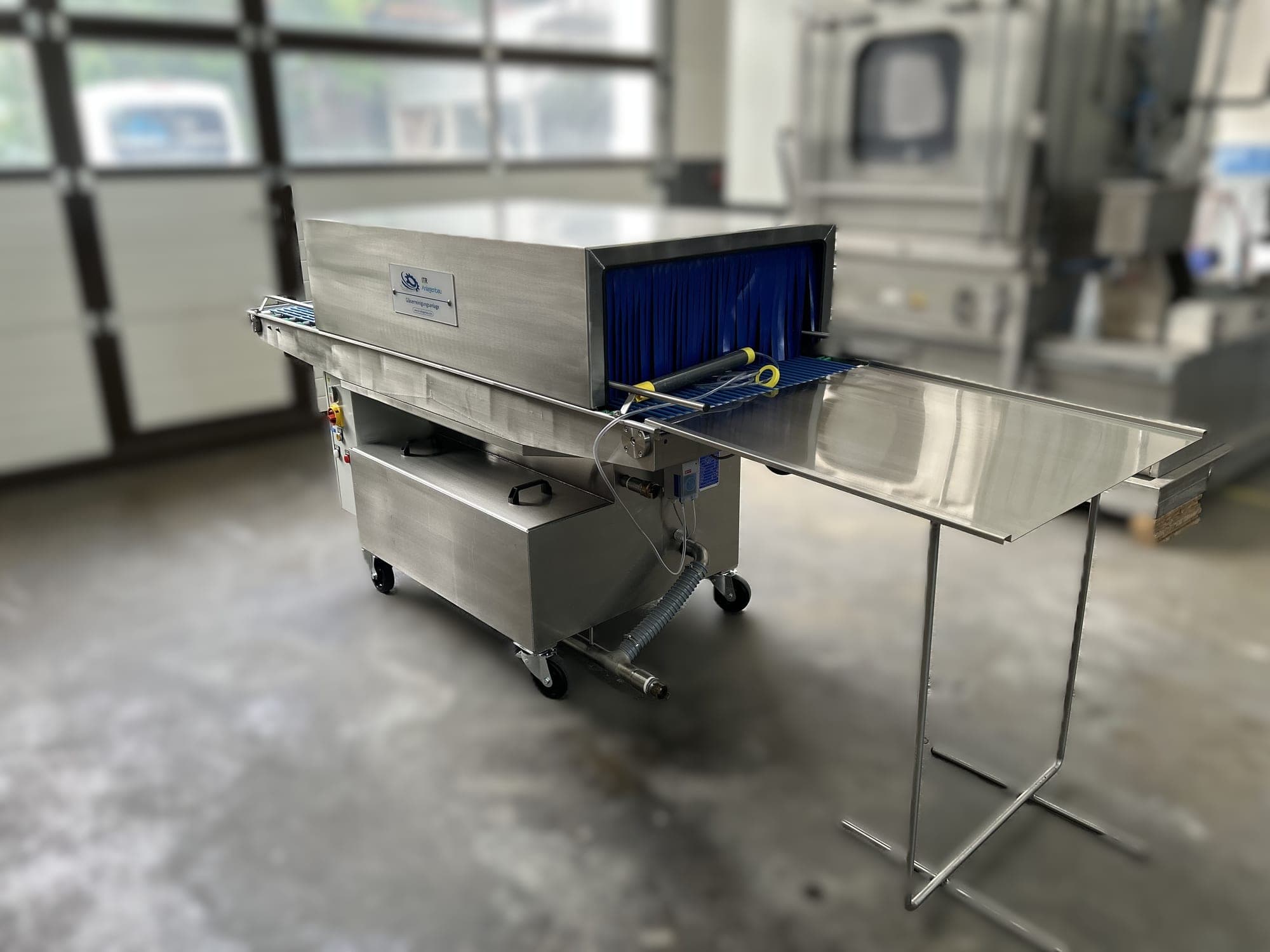

A conveyor glass washer with well-thought-out process control
Hot washing up to 70 °C
Cold rinse
The glassware comes out chilled and ready to serve.UV disinfection of the tank water
Frequency inverter for the belt speed
The throughput is adapted to the rush.Completely stainless steel
With food-grade conveyor belts.Automatic detergent dosing
3 · Two sizes
Compact and Professional
Both sizes wash glassware and beer mugs in continuous operation. The choice depends on the rush the glass washer has to carry.
ITR II
Compact
Bars, catering, smaller events
- Throughput
- up to 1,800 glasses/h
- External dimensions (approx.)
- 1,630 × 1,230 mm
- Usable area
- 480 × 300 mm
- Weight (approx.)
- 110 kg
- Connection
- 400 V / 16 A
- Tank
- 50 l
ITR III
Professional
Folk festivals, festivals, major events, event technology
- Throughput
- up to 2,800 glasses/h
- External dimensions (approx.)
- 2,200 × 1,230 mm
- Usable area
- 690 × 300 mm
- Weight (approx.)
- 140 kg
- Connection
- 400 V / 32 A
- Tank
- 100 l
Service and spare parts are also available for existing glassware and mug washing systems.
