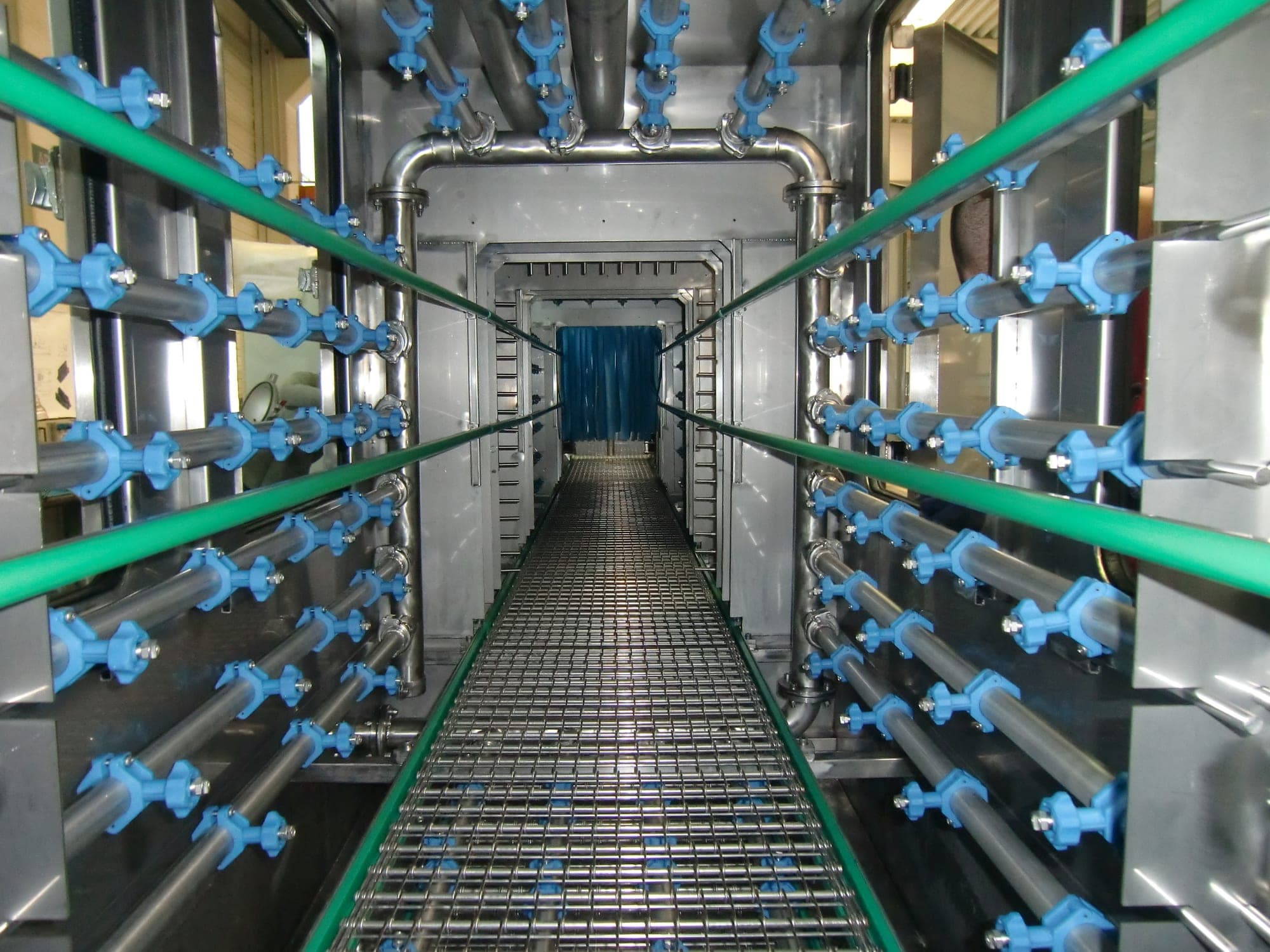

View through the interior of a continuous cleaning system: rows of spray nozzles on both sides above a mesh belt that carries the components through the system

The fastest method — as long as the process medium gets everywhere.

Spray Cleaning

On many components the dirt sits on accessible outer surfaces — oil, emulsion, chips and dust can then be removed over the surface without submerging the part in a medium. The only question is whether every relevant surface really is reachable.
Request a system design

1 · The challenge

Reachability decides, not the wish

Oil, emulsion, chips and dust can be removed over the surface as long as the component does not have to be submerged in a medium. For degreasing the same applies as for any other contamination: whether every relevant surface really is reachable is decided not by the wish but by the geometry.

2 · Engineering considerations

Spraying for simple geometries — with a property you have to know

Spraying is suited to simple part geometries with few bores and few blind holes. The advantage is the direct, directed action: the process medium hits the surface with energy and removes the contamination mechanically. Whether that turns into a spray cleaning system as a configuration of its own, or spraying remains one stage in a multi-stage system, is decided by the task — not by the method.

Spray shadow — the property you have to know

Spraying creates a spray shadow: areas that lie hidden are not reached directly by the jet. That is not a weakness of the system but a property of the method — and it belongs in the decision, not in the fine print.

Its effectiveness therefore depends directly on the workpiece fixture: how the component is held and oriented co-determines where a spray shadow forms and whether the nozzles are accessible.

Technical terms in the glossary

3 · When something else is the better fit

Spraying does not rule out other methods

Whether spraying is enough is decided by the part geometry. Under other conditions another method is the better fit — often in combination, too.
  • 01

    Many bores and blind holes, complex geometry

    Immersion cleaning or flood washing are the better fit.
  • 02

    Individual bores have to be flowed through in a targeted way

    Lance technology.
  • 03

    Burrs additionally have to be removed

    High-precision water jet deburring.

Spraying and other methods are not mutually exclusive. Often they are combined: sprayed where the surface is accessible, immersed or flooded where it is not.

Immersion cleaningFlood washingLance technologyHigh-Precision Water Jet Deburring

4 · Where the method is used

From the single method to the combined system

Depending on the task, spraying processes run in chamber, continuous or rotary indexing cleaning systems — and in the spray-immersion cleaning system APOLLO combined with immersion: accessible surfaces are sprayed, hard-to-reach ones immersed.
Chamber Cleaning SystemsContinuous Cleaning SystemsSpray-Immersion Cleaning SystemsCleaning MethodsComponents and Applications

Questions and answers

Frequently asked questions about spray cleaning

What is spray cleaning and when does it make sense?

In spray cleaning the process medium hits the surface with energy and removes the contamination mechanically. It is suited to simple part geometries with few bores and few blind holes. Its limit is the spray shadow: hidden areas are not reached directly by the jet — the more branched the component, the sooner immersion or flooding.
